Binder死亡通知机制之linkToDeath

Posted by Gityuan on October 3, 2016

基于Android 6.0源码, 涉及相关源码

frameworks/base/core/java/android/os/Binder.java
frameworks/base/core/jni/android_util_Binder.cpp
frameworks/native/libs/binder/BpBinder.cpp

一. 概述

死亡通知是为了让Bp端(客户端进程)进能知晓Bn端(服务端进程)的生死情况，当Bn端进程死亡后能通知到Bp端。

  • 定义：AppDeathRecipient是继承IBinder::DeathRecipient类，主要需要实现其binderDied()来进行死亡通告。
  • 注册：binder->linkToDeath(AppDeathRecipient)是为了将AppDeathRecipient死亡通知注册到Binder上。

Bp端只需要覆写binderDied()方法，实现一些后尾清除类的工作，则在Bn端死掉后，会回调binderDied()进行相应处理。

1.1 实例说明

public final class ActivityManagerService {
    private final boolean attachApplicationLocked(IApplicationThread thread, int pid) {
        ...
        //创建IBinder.DeathRecipient子类对象
        AppDeathRecipient adr = new AppDeathRecipient(app, pid, thread);
        //建立binder死亡回调
        thread.asBinder().linkToDeath(adr, 0);
        app.deathRecipient = adr;
        ...
        //取消binder死亡回调
        app.unlinkDeathRecipient();
    }

    private final class AppDeathRecipient implements IBinder.DeathRecipient {
        ...
        public void binderDied() {
            synchronized(ActivityManagerService.this) {
                appDiedLocked(mApp, mPid, mAppThread, true);
            }
        }
    }
}

前面涉及到linkToDeath和unlinkToDeath方法，实现如下：

[-> Binder.java]

public class Binder implements IBinder {
    public void linkToDeath(DeathRecipient recipient, int flags) {
    }

    public boolean unlinkToDeath(DeathRecipient recipient, int flags) {
        return true;
    }
}

final class BinderProxy implements IBinder {
    public native void linkToDeath(DeathRecipient recipient, int flags)
            throws RemoteException;
    public native boolean unlinkToDeath(DeathRecipient recipient, int flags);
}

可见，以上两个方法：

  • 当为Binder服务端，则相应的两个方法实现为空，没有实际功能；
  • 当为BinderProxy代理端，则调用native方法来实现相应功能，这是真实的使用场景。

二. 上层注册死亡通知

BinderProxy调用linkToDeath()方法是一个native方法, 通过jni进入如下方法：

2.1 linkToDeath

[-> android_util_Binder.cpp]

static void android_os_BinderProxy_linkToDeath(JNIEnv* env, jobject obj,
        jobject recipient, jint flags)
{
    if (recipient == NULL) {
        jniThrowNullPointerException(env, NULL);
        return;
    }

    //获取BinderProxy.mObject成员变量值, 即BpBinder对象
    IBinder* target = (IBinder*)env->GetLongField(obj, gBinderProxyOffsets.mObject);
    ...

    //只有Binder代理对象才会进入该分支
    if (!target->localBinder()) {
        DeathRecipientList* list = (DeathRecipientList*)
                env->GetLongField(obj, gBinderProxyOffsets.mOrgue);
        //创建JavaDeathRecipient对象[见小节2.1.1]
        sp<JavaDeathRecipient> jdr = new JavaDeathRecipient(env, recipient, list);
        //建立死亡通知[见小节2.2]
        status_t err = target->linkToDeath(jdr, NULL, flags);
        if (err != NO_ERROR) {
            //添加死亡通告失败, 则从list移除引用[见小节2.1.3]
            jdr->clearReference();
            signalExceptionForError(env, obj, err, true /*canThrowRemoteException*/);
        }
    }
}

过程说明:

  • 获取DeathRecipientList: 其成员变量mList记录该BinderProxy的JavaDeathRecipient列表信息；
    • 一个BpBinder可以注册多个死亡回调
  • 创建JavaDeathRecipient: 继承于IBinder::DeathRecipient

2.1.1 JavaDeathRecipient

[-> android_util_Binder.cpp]

class JavaDeathRecipient : public IBinder::DeathRecipient
{
public:
    JavaDeathRecipient(JNIEnv* env, jobject object, const sp<DeathRecipientList>& list)
        : mVM(jnienv_to_javavm(env)), mObject(env->NewGlobalRef(object)),
          mObjectWeak(NULL), mList(list)
    {
        //将当前对象sp添加到列表DeathRecipientList
        list->add(this);
        android_atomic_inc(&gNumDeathRefs);
        incRefsCreated(env); //[见小节2.1.2]
    }
}

该方法主要功能：

  • 通过env->NewGlobalRef(object)，为recipient创建相应的全局引用，并保存到mObject成员变量；
  • 将当前对象JavaDeathRecipient的强指针sp添加到DeathRecipientList；

2.1.2 incRefsCreated

[-> android_util_Binder.cpp]

static void incRefsCreated(JNIEnv* env)
{
    int old = android_atomic_inc(&gNumRefsCreated);
    if (old == 2000) {
        android_atomic_and(0, &gNumRefsCreated);
        //触发forceGc
        env->CallStaticVoidMethod(gBinderInternalOffsets.mClass,
                gBinderInternalOffsets.mForceGc);
    }
}

该方法的主要是增加引用计数incRefsCreated，每计数增加2000则执行一次forceGc;

会触发调用incRefsCreated()的场景有：

  • JavaBBinder对象创建过程
  • JavaDeathRecipient对象创建过程；
  • javaObjectForIBinder()方法：将native层BpBinder对象转换为Java层BinderProxy对象的过程；

2.1.3 clearReference

[-> android_util_Binder.cpp ::JavaDeathRecipient]

void clearReference()
 {
     sp<DeathRecipientList> list = mList.promote();
     if (list != NULL) {
         list->remove(this); //从列表中移除引用
     }
 }

清除引用，将JavaDeathRecipient从DeathRecipientList列表中移除.

2.2 linkToDeath

[-> BpBinder.cpp]

status_t BpBinder::linkToDeath(
    const sp<DeathRecipient>& recipient, void* cookie, uint32_t flags)
{
    Obituary ob;
    ob.recipient = recipient; //该对象为JavaDeathRecipient
    ob.cookie = cookie; // cookie=NULL
    ob.flags = flags; // flags=0
    {
        AutoMutex _l(mLock);
        if (!mObitsSent) { //没有执行过sendObituary，则进入该方法
            if (!mObituaries) {
                mObituaries = new Vector<Obituary>;
                if (!mObituaries) {
                    return NO_MEMORY;
                }
                getWeakRefs()->incWeak(this);
                IPCThreadState* self = IPCThreadState::self();
                //[见小节2.3]
                self->requestDeathNotification(mHandle, this);
                //[见小节2.4]
                self->flushCommands();
            }
            //将新创建的Obituary添加到mObituaries
            ssize_t res = mObituaries->add(ob);
            return res >= (ssize_t)NO_ERROR ? (status_t)NO_ERROR : res;
        }
    }
    return DEAD_OBJECT;
}

2.2.1 DeathRecipient关系图

deathRecipient

Java层的BinderProxy.mOrgue指向DeathRecipientList，而DeathRecipientList记录JavaDeathRecipient对象。

2.3 requestDeathNotification

[-> IPCThreadState.cpp]

status_t IPCThreadState::requestDeathNotification(int32_t handle, BpBinder* proxy)
{
    mOut.writeInt32(BC_REQUEST_DEATH_NOTIFICATION);
    mOut.writeInt32((int32_t)handle);
    mOut.writePointer((uintptr_t)proxy);
    return NO_ERROR;
}

进入Binder driver后, 直接调用后进入binder_thread_write, 处理BC_REQUEST_DEATH_NOTIFICATION命令

2.4 flushCommands

[-> IPCThreadState.cpp]

void IPCThreadState::flushCommands()
{
    if (mProcess->mDriverFD <= 0)
        return;
    talkWithDriver(false);
}

flushCommands就是把命令向驱动发出，此处参数为false，则不会阻塞等待读。 向Kernel层的binder driver发送BC_REQUEST_DEATH_NOTIFICATION命令，经过ioctl执行到 binder_ioctl_write_read()方法。

三. Kernel层注册通知

3.1 binder_ioctl_write_read

[-> kernel/drivers/android/binder.c]

static int binder_ioctl_write_read(struct file *filp,
                unsigned int cmd, unsigned long arg,
                struct binder_thread *thread)
{
    int ret = 0;
    struct binder_proc *proc = filp->private_data;
    void __user *ubuf = (void __user *)arg;
    struct binder_write_read bwr;

    if (copy_from_user(&bwr, ubuf, sizeof(bwr))) { //把用户空间数据ubuf拷贝到bwr
        ret = -EFAULT;
        goto out;
    }
    if (bwr.write_size > 0) { //此时写缓存有数据【见小节3.2】
        ret = binder_thread_write(proc, thread,
                  bwr.write_buffer, bwr.write_size, &bwr.write_consumed);
         ...
    }

    if (bwr.read_size > 0) { //此时读缓存没有数据
      ...
    }

    if (copy_to_user(ubuf, &bwr, sizeof(bwr))) { //将内核数据bwr拷贝到用户空间ubuf
        ret = -EFAULT;
        goto out;
    }
out:
    return ret;
}

3.2 binder_thread_write

[-> kernel/drivers/android/binder.c]

static int binder_thread_write(struct binder_proc *proc,
      struct binder_thread *thread,
      binder_uintptr_t binder_buffer, size_t size,
      binder_size_t *consumed)
{
  uint32_t cmd;
  //proc, thread都是指当前发起端进程的信息
  struct binder_context *context = proc->context;
  void __user *buffer = (void __user *)(uintptr_t)binder_buffer;
  void __user *ptr = buffer + *consumed;
  void __user *end = buffer + size;
  while (ptr < end && thread->return_error == BR_OK) {
    get_user(cmd, (uint32_t __user *)ptr); //获取BC_REQUEST_DEATH_NOTIFICATION
    ptr += sizeof(uint32_t);
    switch (cmd) {
        case BC_REQUEST_DEATH_NOTIFICATION:{ //注册死亡通知
            uint32_t target;
            void __user *cookie;
            struct binder_ref *ref;
            struct binder_ref_death *death;

            get_user(target, (uint32_t __user *)ptr); //获取target
            ptr += sizeof(uint32_t);
            get_user(cookie, (void __user * __user *)ptr); //获取BpBinder
            ptr += sizeof(void *);

            ref = binder_get_ref(proc, target); //拿到目标服务的binder_ref

            if (cmd == BC_REQUEST_DEATH_NOTIFICATION) {
                //native Bp可注册多个，但Kernel只允许注册一个死亡通知
                if (ref->death) {
                    break;
                }
                death = kzalloc(sizeof(*death), GFP_KERNEL);

                INIT_LIST_HEAD(&death->work.entry);
                death->cookie = cookie; //BpBinder指针
                ref->death = death;
                //当目标binder服务所在进程已死,则直接发送死亡通知。这是非常规情况
                if (ref->node->proc == NULL) {
                    ref->death->work.type = BINDER_WORK_DEAD_BINDER;
                    //当前线程为binder线程,则直接添加到当前线程的todo队列.
                    if (thread->looper & (BINDER_LOOPER_STATE_REGISTERED | BINDER_LOOPER_STATE_ENTERED)) {
                        list_add_tail(&ref->death->work.entry, &thread->todo);
                    } else {
                        list_add_tail(&ref->death->work.entry, &proc->todo);
                        wake_up_interruptible(&proc->wait);
                    }
                }
            } else {
                ...
            }
        } break;
      case ...;
    }
    *consumed = ptr - buffer;
  }
}

该方法在处理BC_REQUEST_DEATH_NOTIFICATION过程，正好遇到对端目标binder服务所在进程已死的情况， 向todo队列增加BINDER_WORK_DEAD_BINDER事务，直接发送死亡通知，但这属于非常规情况。

更常见的场景是binder服务所在进程死亡后,会调用binder_release方法, 然后调用binder_node_release.这个过程便会发出死亡通知的回调.

四. 触发死亡通知

当Binder服务所在进程死亡后，会释放进程相关的资源，Binder也是一种资源。 binder_open打开binder驱动/dev/binder，这是字符设备，获取文件描述符。在进程结束的时候会有一个关闭文件系统的过程中会调用驱动close方法，该方法相对应的是release()方法。当binder的fd被释放后，此处调用相应的方法是binder_release().

但并不是每个close系统调用都会触发调用release()方法. 只有真正释放设备数据结构才调用release(),内核维持一个文件结构被使用多少次的计数，即便是应用程序没有明显地关闭它打开的文件也适用: 内核在进程exit()时会释放所有内存和关闭相应的文件资源, 通过使用close系统调用最终也会release binder.

4.1 release

[-> binder.c]

static const struct file_operations binder_fops = {
  .owner = THIS_MODULE,
  .poll = binder_poll,
  .unlocked_ioctl = binder_ioctl,
  .compat_ioctl = binder_ioctl,
  .mmap = binder_mmap,
  .open = binder_open,
  .flush = binder_flush,
  .release = binder_release, //对应于release的方法
};

4.2 binder_release

static int binder_release(struct inode *nodp, struct file *filp)
{
  struct binder_proc *proc = filp->private_data;
  debugfs_remove(proc->debugfs_entry);
  //[见小节4.3]
  binder_defer_work(proc, BINDER_DEFERRED_RELEASE);
  return 0;
}

4.3 binder_defer_work

static void binder_defer_work(struct binder_proc *proc, enum binder_deferred_state defer)
{
  mutex_lock(&binder_deferred_lock); //获取锁
  //添加BINDER_DEFERRED_RELEASE
  proc->deferred_work |= defer;
  if (hlist_unhashed(&proc->deferred_work_node)) {
    hlist_add_head(&proc->deferred_work_node, &binder_deferred_list);
    //向工作队列添加binder_deferred_work [见小节4.4]
    queue_work(binder_deferred_workqueue, &binder_deferred_work);
  }
  mutex_unlock(&binder_deferred_lock); //释放锁
}

4.4 queue_work

//全局工作队列
static struct workqueue_struct *binder_deferred_workqueue;

static int __init binder_init(void)
{
  int ret;
  //创建了名叫“binder”的工作队列
  binder_deferred_workqueue = create_singlethread_workqueue("binder");
  if (!binder_deferred_workqueue)
    return -ENOMEM;
  ...
}

device_initcall(binder_init);

关于binder_deferred_work的定义：

static DECLARE_WORK(binder_deferred_work, binder_deferred_func);

#define DECLARE_WORK(n, f)            \
  struct work_struct n = __WORK_INITIALIZER(n, f)

#define __WORK_INITIALIZER(n, f) {          \
  .data = WORK_DATA_STATIC_INIT(),        \
  .entry  = { &(n).entry, &(n).entry },        \
  .func = (f),              \
  __WORK_INIT_LOCKDEP_MAP(#n, &(n))        \
  }

在Binder设备驱动初始化的过程执行binder_init()方法中，调用 create_singlethread_workqueue(“binder”)，创建了名叫“binder”的工作队列(workqueue)。 workqueue是kernel提供的一种实现简单而有效的内核线程机制，可延迟执行任务。

此处binder_deferred_work的func为binder_deferred_func，接下来看该方法。

4.5 binder_deferred_func

static void binder_deferred_func(struct work_struct *work)
{
  struct binder_proc *proc;
  struct files_struct *files;

  int defer;
  do {
    mutex_lock(&binder_main_lock); //获取binder_main_lock
    mutex_lock(&binder_deferred_lock);
    preempt_disable(); //禁止CPU抢占
    if (!hlist_empty(&binder_deferred_list)) {
      proc = hlist_entry(binder_deferred_list.first,
          struct binder_proc, deferred_work_node);
      hlist_del_init(&proc->deferred_work_node);
      defer = proc->deferred_work;
      proc->deferred_work = 0;
    } else {
      proc = NULL;
      defer = 0;
    }
    mutex_unlock(&binder_deferred_lock);

    files = NULL;
    if (defer & BINDER_DEFERRED_PUT_FILES) {
      files = proc->files;
      if (files)
        proc->files = NULL;
    }

    if (defer & BINDER_DEFERRED_FLUSH)
      binder_deferred_flush(proc);

    if (defer & BINDER_DEFERRED_RELEASE)
      binder_deferred_release(proc); //[见小节4.6]

    mutex_unlock(&binder_main_lock); //释放锁
    preempt_enable_no_resched();
    if (files)
      put_files_struct(files);
  } while (proc);
}

可见，binder_release最终调用的是binder_deferred_release； 同理，binder_flush最终调用的是binder_deferred_flush。

4.6 binder_deferred_release

static void binder_deferred_release(struct binder_proc *proc)
{
  struct binder_transaction *t;
  struct rb_node *n;
  int threads, nodes, incoming_refs, outgoing_refs, buffers,
    active_transactions, page_count;

  hlist_del(&proc->proc_node); //删除proc_node节点

  if (binder_context_mgr_node && binder_context_mgr_node->proc == proc) {
    binder_context_mgr_node = NULL;
  }

  //释放binder_thread[见小节4.6.1]
  threads = 0;
  active_transactions = 0;
  while ((n = rb_first(&proc->threads))) {
    struct binder_thread *thread;
    thread = rb_entry(n, struct binder_thread, rb_node);
    threads++;
    active_transactions += binder_free_thread(proc, thread);
  }

  //释放binder_node [见小节4.6.2]
  nodes = 0;
  incoming_refs = 0;
  while ((n = rb_first(&proc->nodes))) {
    struct binder_node *node;
    node = rb_entry(n, struct binder_node, rb_node);
    nodes++;
    rb_erase(&node->rb_node, &proc->nodes);
    incoming_refs = binder_node_release(node, incoming_refs);
  }

  //释放binder_ref [见小节4.6.3]
  outgoing_refs = 0;
  while ((n = rb_first(&proc->refs_by_desc))) {
    struct binder_ref *ref;

    ref = rb_entry(n, struct binder_ref, rb_node_desc);
    outgoing_refs++;
    binder_delete_ref(ref);
  }

  //释放binder_work [见小节4.6.4]
  binder_release_work(&proc->todo);
  binder_release_work(&proc->delivered_death);

  buffers = 0;
  while ((n = rb_first(&proc->allocated_buffers))) {
    struct binder_buffer *buffer;
    buffer = rb_entry(n, struct binder_buffer, rb_node);

    t = buffer->transaction;
    if (t) {
      t->buffer = NULL;
      buffer->transaction = NULL;
    }
    //释放binder_buf [见小节4.6.5]
    binder_free_buf(proc, buffer);
    buffers++;
  }

  binder_stats_deleted(BINDER_STAT_PROC);

  page_count = 0;
  if (proc->pages) {
    int i;

    for (i = 0; i < proc->buffer_size / PAGE_SIZE; i++) {
      void *page_addr;
      if (!proc->pages[i])
        continue;

      page_addr = proc->buffer + i * PAGE_SIZE;
      unmap_kernel_range((unsigned long)page_addr, PAGE_SIZE);
      __free_page(proc->pages[i]);
      page_count++;
    }
    kfree(proc->pages);
    vfree(proc->buffer);
  }
  put_task_struct(proc->tsk);
  kfree(proc);
}

此处proc是来自Bn端的binder_proc

4.6.1 binder_free_thread

static int binder_free_thread(struct binder_proc *proc,
            struct binder_thread *thread)
{
  struct binder_transaction *t;
  struct binder_transaction *send_reply = NULL;
  int active_transactions = 0;

  rb_erase(&thread->rb_node, &proc->threads);
  t = thread->transaction_stack;
  if (t && t->to_thread == thread)
    send_reply = t; //服务端
  while (t) {
    active_transactions++;
    if (t->to_thread == thread) {
      t->to_proc = NULL;
      t->to_thread = NULL;
      if (t->buffer) {
        t->buffer->transaction = NULL;
        t->buffer = NULL;
      }
      t = t->to_parent;
    } else if (t->from == thread) {
      t->from = NULL;
      t = t->from_parent;
    }
  }

  //将发起方线程的return_error值设置为BR_DEAD_REPLY【见小节4.6.4.1】
  if (send_reply)
    binder_send_failed_reply(send_reply, BR_DEAD_REPLY);
  //[见小节4.6.4]
  binder_release_work(&thread->todo);
  kfree(thread);
  binder_stats_deleted(BINDER_STAT_THREAD);
  return active_transactions;
}

4.6.2 binder_node_release

static int binder_node_release(struct binder_node *node, int refs)
{
  struct binder_ref *ref;
  int death = 0;

  list_del_init(&node->work.entry);
  //[见小节4.6.4]
  binder_release_work(&node->async_todo);

  if (hlist_empty(&node->refs)) {
    kfree(node); //引用为空，则直接删除节点
    binder_stats_deleted(BINDER_STAT_NODE);
    return refs;
  }

  node->proc = NULL;
  node->local_strong_refs = 0;
  node->local_weak_refs = 0;
  hlist_add_head(&node->dead_node, &binder_dead_nodes);

  hlist_for_each_entry(ref, &node->refs, node_entry) {
    refs++;
    if (!ref->death)
      continue;
    death++;

    if (list_empty(&ref->death->work.entry)) {
      //添加BINDER_WORK_DEAD_BINDER事务到todo队列 [见小节5.1]
      ref->death->work.type = BINDER_WORK_DEAD_BINDER;
      list_add_tail(&ref->death->work.entry, &ref->proc->todo);
      wake_up_interruptible(&ref->proc->wait);
    }
  }
  return refs;
}

该方法会遍历该binder_node所有的binder_ref, 当存在binder死亡通知，则向相应的binder_ref 所在进程的todo队列添加BINDER_WORK_DEAD_BINDER事务并唤醒处于proc->wait的binder线程，下一步行动见[见小节5.1]。

4.6.3 binder_delete_ref

static void binder_delete_ref(struct binder_ref *ref)
{
  rb_erase(&ref->rb_node_desc, &ref->proc->refs_by_desc);
  rb_erase(&ref->rb_node_node, &ref->proc->refs_by_node);
  if (ref->strong)
    binder_dec_node(ref->node, 1, 1);
  hlist_del(&ref->node_entry);
  binder_dec_node(ref->node, 0, 1);
  if (ref->death) {
    list_del(&ref->death->work.entry);
    kfree(ref->death);
    binder_stats_deleted(BINDER_STAT_DEATH);
  }
  kfree(ref);
  binder_stats_deleted(BINDER_STAT_REF);
}

4.6.4 binder_release_work

static void binder_release_work(struct list_head *list)
{
  struct binder_work *w;
  while (!list_empty(list)) {
    w = list_first_entry(list, struct binder_work, entry);
    list_del_init(&w->entry); //删除binder_work
    switch (w->type) {
    case BINDER_WORK_TRANSACTION: {
      struct binder_transaction *t;
      t = container_of(w, struct binder_transaction, work);
      if (t->buffer->target_node &&
          !(t->flags & TF_ONE_WAY)) {
        //发送failed回复【见小节4.6.4.1】
        binder_send_failed_reply(t, BR_DEAD_REPLY);
      } else {
        t->buffer->transaction = NULL;
        kfree(t);
        binder_stats_deleted(BINDER_STAT_TRANSACTION);
      }
    } break;

    case BINDER_WORK_TRANSACTION_COMPLETE: {
      kfree(w);
      binder_stats_deleted(BINDER_STAT_TRANSACTION_COMPLETE);
    } break;

    case BINDER_WORK_DEAD_BINDER_AND_CLEAR:
    case BINDER_WORK_CLEAR_DEATH_NOTIFICATION: {
      struct binder_ref_death *death;
      death = container_of(w, struct binder_ref_death, work);
      kfree(death);
      binder_stats_deleted(BINDER_STAT_DEATH);
    } break;

    default:
      break;
    }
  }

}
4.6.4.1 binder_send_failed_reply
static void binder_send_failed_reply(struct binder_transaction *t,
             uint32_t error_code)
{
  struct binder_thread *target_thread;
  struct binder_transaction *next;

  while (1) {
    target_thread = t->from;
    if (target_thread) {
      if (target_thread->return_error != BR_OK &&
         target_thread->return_error2 == BR_OK) {
        target_thread->return_error2 =
          target_thread->return_error;
        target_thread->return_error = BR_OK;
      }
      if (target_thread->return_error == BR_OK) {
        binder_pop_transaction(target_thread, t);
        //设置错误的返回码，并唤醒等待线程
        target_thread->return_error = error_code;
        wake_up_interruptible(&target_thread->wait);
      }
      return;
    }
    next = t->from_parent;
    binder_pop_transaction(target_thread, t);
    if (next == NULL) {
      return;
    }
    t = next;
  }
}

4.6.5 binder_free_buf

static void binder_free_buf(struct binder_proc *proc,
          struct binder_buffer *buffer)
{
  size_t size, buffer_size;
  buffer_size = binder_buffer_size(proc, buffer);

  size = ALIGN(buffer->data_size, sizeof(void *)) +
    ALIGN(buffer->offsets_size, sizeof(void *));

  if (buffer->async_transaction) {
    proc->free_async_space += size + sizeof(struct binder_buffer);
  }

  binder_update_page_range(proc, 0,
    (void *)PAGE_ALIGN((uintptr_t)buffer->data),
    (void *)(((uintptr_t)buffer->data + buffer_size) & PAGE_MASK),
    NULL);
  rb_erase(&buffer->rb_node, &proc->allocated_buffers);
  buffer->free = 1;
  if (!list_is_last(&buffer->entry, &proc->buffers)) {
    struct binder_buffer *next = list_entry(buffer->entry.next,
            struct binder_buffer, entry);

    if (next->free) {
      rb_erase(&next->rb_node, &proc->free_buffers);
      binder_delete_free_buffer(proc, next);
    }
  }
  if (proc->buffers.next != &buffer->entry) {
    struct binder_buffer *prev = list_entry(buffer->entry.prev,
            struct binder_buffer, entry);

    if (prev->free) {
      binder_delete_free_buffer(proc, buffer);
      rb_erase(&prev->rb_node, &proc->free_buffers);
      buffer = prev;
    }
  }
  binder_insert_free_buffer(proc, buffer);
}

4.6.6 小结

binder_deferred_release的主要工作有：

  1. binder_free_thread： proc->threads所有线程
    • binder_send_failed_reply(send_reply, BR_DEAD_REPLY)：将发起方线程的return_error值设置为BR_DEAD_REPLY，让其直接返回；
  2. binder_node_release: proc->nodes所有节点
    • binder_release_work(&node->async_todo)
    • node->refs的所有死亡回调
  3. binder_delete_ref: proc->refs_by_desc所有引用
    • 清除引用
  4. binder_release_work: proc->todo, proc->delivered_death
    • binder_send_failed_reply(t, BR_DEAD_REPLY)
  5. binder_free_buf: proc->allocated_buffers所有已分配buffer
    • 释放已分配的buffer
  6. __free_page: proc->pages所有物理内存页

不论是binder线程正在处理的事务，还是位于进程todo队列的事务，当进程被杀后，则会立马通知请求发起方来结束请求。

五. 处理死亡通知

前面[小节4.6.2] binder_node_release的过程会向BINDER_WORK_DEAD_BINDER事务并唤醒处于proc->wait的binder线程。

5.1 binder_thread_read

static int binder_thread_read(struct binder_proc *proc,
                  struct binder_thread *thread,
                  binder_uintptr_t binder_buffer, size_t size,
                  binder_size_t *consumed, int non_block)
    ...
    //唤醒等待中的binder线程
    wait_event_freezable_exclusive(proc->wait, binder_has_proc_work(proc, thread));
    binder_lock(__func__); //加锁

    if (wait_for_proc_work)
        proc->ready_threads--; //空闲的binder线程减1
    thread->looper &= ~BINDER_LOOPER_STATE_WAITING;

    while (1) {
        uint32_t cmd;
        struct binder_transaction_data tr;
        struct binder_work *w;
        struct binder_transaction *t = NULL;

        //从todo队列拿出前面放入的binder_work, 此时type为BINDER_WORK_DEAD_BINDER
        if (!list_empty(&thread->todo)) {
            w = list_first_entry(&thread->todo, struct binder_work,
                         entry);
        } else if (!list_empty(&proc->todo) && wait_for_proc_work) {
            w = list_first_entry(&proc->todo, struct binder_work,
                         entry);
        }

        switch (w->type) {
            case BINDER_WORK_DEAD_BINDER: {
              struct binder_ref_death *death;
              uint32_t cmd;

              death = container_of(w, struct binder_ref_death, work);
              if (w->type == BINDER_WORK_CLEAR_DEATH_NOTIFICATION)
                  ...
              else
                  cmd = BR_DEAD_BINDER; //进入此分支
              put_user(cmd, (uint32_t __user *)ptr);//拷贝到用户空间[见小节5.2]
              ptr += sizeof(uint32_t);

              //此处的cookie是前面传递的BpBinder
              put_user(death->cookie, (binder_uintptr_t __user *)ptr);
              ptr += sizeof(binder_uintptr_t);

              if (w->type == BINDER_WORK_CLEAR_DEATH_NOTIFICATION) {
                  ...
              } else
                  //把该work加入到delivered_death队列
                  list_move(&w->entry, &proc->delivered_death);
              if (cmd == BR_DEAD_BINDER)
                  goto done;
            } break;
        }
    }
    ...
    return 0;
}

将命令BR_DEAD_BINDER写到用户空间，此时用户空间执行过程：

5.2 IPC.getAndExecuteCommand

status_t IPCThreadState::getAndExecuteCommand()
{
    status_t result;
    int32_t cmd;

    result = talkWithDriver(); //该Binder Driver进行交互
    if (result >= NO_ERROR) {
        size_t IN = mIn.dataAvail();
        if (IN < sizeof(int32_t)) return result;
        cmd = mIn.readInt32(); //读取命令

        pthread_mutex_lock(&mProcess->mThreadCountLock);
        mProcess->mExecutingThreadsCount++;
        pthread_mutex_unlock(&mProcess->mThreadCountLock);

        result = executeCommand(cmd); //【见小节5.3】

        pthread_mutex_lock(&mProcess->mThreadCountLock);
        mProcess->mExecutingThreadsCount--;
        pthread_cond_broadcast(&mProcess->mThreadCountDecrement);
        pthread_mutex_unlock(&mProcess->mThreadCountLock);

        set_sched_policy(mMyThreadId, SP_FOREGROUND);
    }
    return result;
}

5.3 IPC.executeCommand

status_t IPCThreadState::executeCommand(int32_t cmd)
{
    BBinder* obj;
    RefBase::weakref_type* refs;
    status_t result = NO_ERROR;

    switch ((uint32_t)cmd) {
      case BR_DEAD_BINDER:
      {
          BpBinder *proxy = (BpBinder*)mIn.readPointer();
          proxy->sendObituary(); //[见小节5.4]
          mOut.writeInt32(BC_DEAD_BINDER_DONE);
          mOut.writePointer((uintptr_t)proxy);
      } break;
      ...
    }
    ...
    return result;
}

同一个bp端即便注册多次死亡通知，但只会发送一次死亡回调。

5.4 Bp.sendObituary

void BpBinder::sendObituary()
{
    mAlive = 0;
    if (mObitsSent) return;

    mLock.lock();
    Vector<Obituary>* obits = mObituaries;
    if(obits != NULL) {
        IPCThreadState* self = IPCThreadState::self();
        //清空死亡通知[见小节6.2]
        self->clearDeathNotification(mHandle, this);
        self->flushCommands();
        mObituaries = NULL;
    }
    mObitsSent = 1;
    mLock.unlock();

    if (obits != NULL) {
        const size_t N = obits->size();
        for (size_t i=0; i<N; i++) {
            //发送死亡通知 [见小节5.5]
            reportOneDeath(obits->itemAt(i));
        }
        delete obits;
    }
}

5.5 reportOneDeath

void BpBinder::reportOneDeath(const Obituary& obit)
{
    //将弱引用提升到sp
    sp<DeathRecipient> recipient = obit.recipient.promote();
    if (recipient == NULL) return;
    //回调死亡通知的方法
    recipient->binderDied(this);
}

本文开头的实例传递的是AppDeathRecipient，那么回调如下方法。

5.6 binderDied

private final class AppDeathRecipient implements IBinder.DeathRecipient {
    ...
    public void binderDied() {
        synchronized(ActivityManagerService.this) {
            appDiedLocked(mApp, mPid, mAppThread, true);
        }
    }
}

六. unlinkToDeath

6.1 unlinkToDeath

status_t BpBinder::unlinkToDeath(
    const wp<DeathRecipient>& recipient, void* cookie, uint32_t flags,
    wp<DeathRecipient>* outRecipient)
{
    AutoMutex _l(mLock);
    if (mObitsSent) {
        return DEAD_OBJECT;
    }

    const size_t N = mObituaries ? mObituaries->size() : 0;
    for (size_t i=0; i<N; i++) {
        const Obituary& obit = mObituaries->itemAt(i);
        if ((obit.recipient == recipient
                    || (recipient == NULL && obit.cookie == cookie))
                && obit.flags == flags) {
            if (outRecipient != NULL) {
                *outRecipient = mObituaries->itemAt(i).recipient;
            }
            mObituaries->removeAt(i); //移除死亡通知
            if (mObituaries->size() == 0) {
                //清理死亡通知
                self->clearDeathNotification(mHandle, this);
                self->flushCommands();
                delete mObituaries;
                mObituaries = NULL;
            }
            return NO_ERROR;
        }
    }
    return NAME_NOT_FOUND;
}

6.2 clearDeathNotification

status_t IPCThreadState::clearDeathNotification(int32_t handle, BpBinder* proxy)
{
    mOut.writeInt32(BC_CLEAR_DEATH_NOTIFICATION);
    mOut.writeInt32((int32_t)handle);
    mOut.writePointer((uintptr_t)proxy);
    return NO_ERROR;
}

写入BC_CLEAR_DEATH_NOTIFICATION命令，再经过flushCommands()，则进入Kernel层。

6.3 Kernel层取消死亡通知

6.3.1 binder_thread_write

static int binder_thread_write(struct binder_proc *proc,
      struct binder_thread *thread,
      binder_uintptr_t binder_buffer, size_t size,
      binder_size_t *consumed)
{
  uint32_t cmd;
  //proc, thread都是指当前发起端进程的信息
  struct binder_context *context = proc->context;
  void __user *buffer = (void __user *)(uintptr_t)binder_buffer;
  void __user *ptr = buffer + *consumed;
  void __user *end = buffer + size;
  while (ptr < end && thread->return_error == BR_OK) {
    get_user(cmd, (uint32_t __user *)ptr); //获取BC_CLEAR_DEATH_NOTIFICATION
    ptr += sizeof(uint32_t);
    switch (cmd) {
        case BC_REQUEST_DEATH_NOTIFICATION:
        case BC_CLEAR_DEATH_NOTIFICATION: { //清除死亡通知
            uint32_t target;
            void __user *cookie;
            struct binder_ref *ref;
            struct binder_ref_death *death;

            get_user(target, (uint32_t __user *)ptr); //获取target
            ptr += sizeof(uint32_t);
            get_user(cookie, (void __user * __user *)ptr);
            ptr += sizeof(void *);

            ref = binder_get_ref(proc, target); //拿到目标服务的binder_ref

            if (cmd == BC_REQUEST_DEATH_NOTIFICATION) {
                ...
            } else {
              if (ref->death == NULL) {
                break;
              }
              death = ref->death;
              if (death->cookie != cookie) {
                break; //比较是否同一个BpBinder
              }
              ref->death = NULL; //设置死亡通知为NULL
              if (list_empty(&death->work.entry)) {
                //添加BINDER_WORK_CLEAR_DEATH_NOTIFICATION事务
                death->work.type = BINDER_WORK_CLEAR_DEATH_NOTIFICATION;
                if (thread->looper & (BINDER_LOOPER_STATE_REGISTERED | BINDER_LOOPER_STATE_ENTERED)) {
                  list_add_tail(&death->work.entry, &thread->todo);
                } else {
                  list_add_tail(&death->work.entry, &proc->todo);
                  wake_up_interruptible(&proc->wait);
                }
              } else {
                death->work.type = BINDER_WORK_DEAD_BINDER_AND_CLEAR;
              }
            }
        } break;
      case ...;
    }
  }
}

添加BINDER_WORK_CLEAR_DEATH_NOTIFICATION事务

6.3.2 binder_thread_read

static int binder_thread_read(struct binder_proc *proc,
                  struct binder_thread *thread,
                  binder_uintptr_t binder_buffer, size_t size,
                  binder_size_t *consumed, int non_block)
    ...
    //唤醒等待中的binder线程
    wait_event_freezable_exclusive(proc->wait, binder_has_proc_work(proc, thread));
    binder_lock(__func__); //加锁

    if (wait_for_proc_work)
        proc->ready_threads--; //空闲的binder线程减1
    thread->looper &= ~BINDER_LOOPER_STATE_WAITING;

    while (1) {
        uint32_t cmd;
        struct binder_transaction_data tr;
        struct binder_work *w;
        struct binder_transaction *t = NULL;

        //从todo队列拿出前面放入的binder_work, 此时type为BINDER_WORK_DEAD_BINDER
        if (!list_empty(&thread->todo)) {
            w = list_first_entry(&thread->todo, struct binder_work,
                         entry);
        } else if (!list_empty(&proc->todo) && wait_for_proc_work) {
            w = list_first_entry(&proc->todo, struct binder_work,
                         entry);
        }

        switch (w->type) {
          case BINDER_WORK_DEAD_BINDER:
          case BINDER_WORK_DEAD_BINDER_AND_CLEAR:
          case BINDER_WORK_CLEAR_DEATH_NOTIFICATION: {
            struct binder_ref_death *death;
            uint32_t cmd;

            death = container_of(w, struct binder_ref_death, work);
            if (w->type == BINDER_WORK_CLEAR_DEATH_NOTIFICATION)
              cmd = BR_CLEAR_DEATH_NOTIFICATION_DONE; //清除完成
            ...

            if (w->type == BINDER_WORK_CLEAR_DEATH_NOTIFICATION) {
              list_del(&w->entry); //清除死亡通知的work队列
              kfree(death);
              binder_stats_deleted(BINDER_STAT_DEATH);
            }
            ...

            if (cmd == BR_DEAD_BINDER)
              goto done;
          } break;
        }
    }
    ...
    return 0;
}

需要再回到用户空间，查看BR_CLEAR_DEATH_NOTIFICATION_DONE处理过程

6.4 IPC.executeCommand

status_t IPCThreadState::executeCommand(int32_t cmd)
{
    BBinder* obj;
    RefBase::weakref_type* refs;
    status_t result = NO_ERROR;

    switch ((uint32_t)cmd) {
        case BR_CLEAR_DEATH_NOTIFICATION_DONE:
        {
            BpBinder *proxy = (BpBinder*)mIn.readPointer();
            //减少弱引用
            proxy->getWeakRefs()->decWeak(proxy);
        } break;
      ...
    }
    ...
    return result;
}

七. 结论

对于Binder IPC进程都会打开/dev/binder文件，当进程异常退出时，Binder驱动会保证释放将要退出的进程中没有正常关闭的/dev/binder文件，实现机制是binder驱动通过调用/dev/binder文件所对应的release回调函数，执行清理工作，并且检查BBinder是否有注册死亡通知，当发现存在死亡通知时，那么就向其对应的BpBinder端发送死亡通知消息。

死亡回调DeathRecipient只有Bp才能正确使用，因为DeathRecipient用于监控Bn端挂掉的情况， 如果Bn建立跟自己的死亡通知，自己进程都挂了，也就无法通知。

每个BpBinder都有一个记录DeathRecipient列表的对象DeathRecipientList。

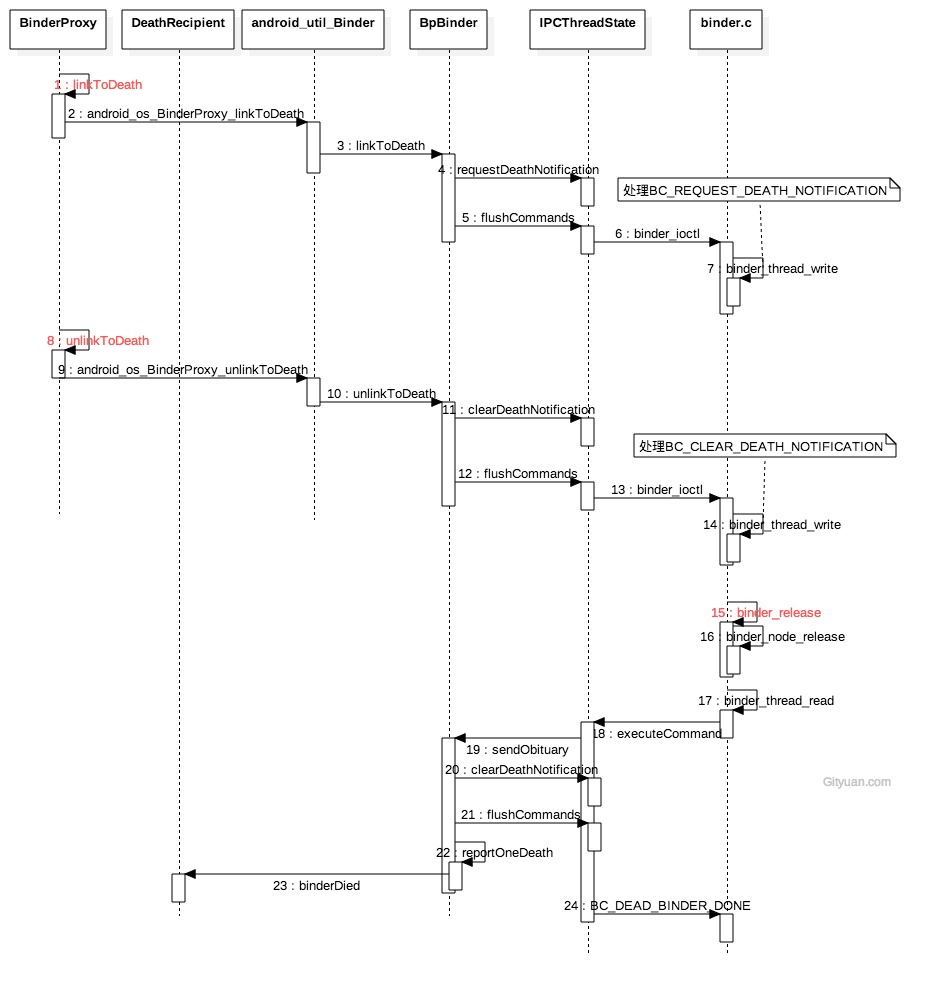

7.1 流程图


图解：点击查看大图

linkToDeath过程

  1. requestDeathNotification过程向驱动传递的命令BC_REQUEST_DEATH_NOTIFICATION，参数有mHandle和BpBinder对象；
  2. binder_thread_write()过程，同一个BpBinder可以注册多个死亡回调，但Kernel只允许注册一次死亡通知。
  3. 注册死亡回调的过程，实质就是向binder_ref结构体添加binder_ref_death指针， binder_ref_death的cookie记录BpBinder指针。

unlinkToDeath过程

  1. unlinkToDeath只有当该BpBinder的所有mObituaries都被移除，才会向驱动层执行清除死亡通知的动作， 否则只是从native层移除某个recipient。
  2. clearDeathNotification过程向驱动传递BC_CLEAR_DEATH_NOTIFICATION，参数有mHandle和BpBinder对象；
  3. binder_thread_write()过程，将BINDER_WORK_CLEAR_DEATH_NOTIFICATION事务添加当前当前进程/线程的todo队列

触发死亡回调

  1. 服务实体进程：binder_release过程会执行binder_node_release()，loop该binder_node下所有的ref->death对象。 当存在，则将BINDER_WORK_DEAD_BINDER事务添加ref->proc->todo（即ref所在进程的todo队列)
  2. 引用所在进程：执行binder_thread_read()过程，向用户空间写入BR_DEAD_BINDER，并触发死亡回调。
  3. 发送死亡通知sendObituary
微信公众号 Gityuan | 微博 weibo.com/gityuan | 博客 留言区交流
CATALOG
    标签
    android 组件系列 else debug 权限 web tool java performance app algorithm 进程系列 虚拟机 memory jvm linux binder ipc handler process power 系统启动 AMS PMS 自学编程 stability 组件 art graphic NativeDebug 实战案例 flutter
